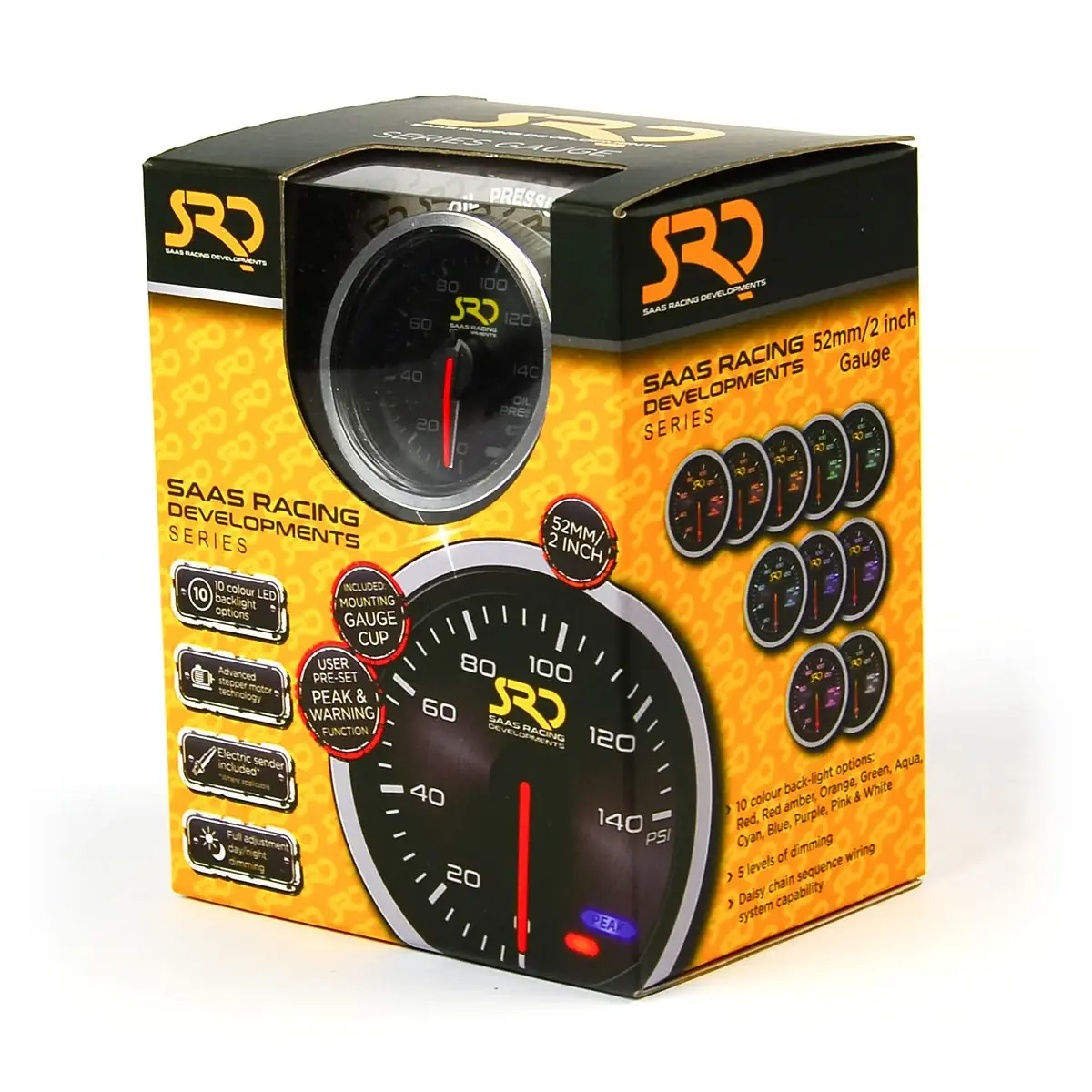

This SAAS SRD series gauge is a precision instrument designed to monitor and display your vehicle's oil pressure accurately. With its sleek 52mm design and clear display, this SAAS SRD oil pressure gauge not only provides critical data but also adds a touch of style to your vehicle's interior.
Our SAAS SRD oil pressure gauge is perfect to keeping an eye on pressure movement. Engine oil pressure is one your engine's most vital signs and monitoring for any variation is critical.
The sender is most commonly piggy backed off the OE oil pressure sender/switch using a brass T-Adaptor. Alternatively, consider using a SAAS oil filter sandwich plate that provides up to 3 sender ports for accessories. Should the standard sender wire not be long enough, splice in an additional length of wire with a gauge NO GREATER than supplied loom wire. SAAS recommends <= 20AWG wire. Use of a heavier gauge wire or of too greater length will impact resistance and distort temperature readings.
Series | SRD |
Bezel OD | 57mm / 2 1/4" |
Body OD | 52mm / 2" |
Range | 0-140psi |

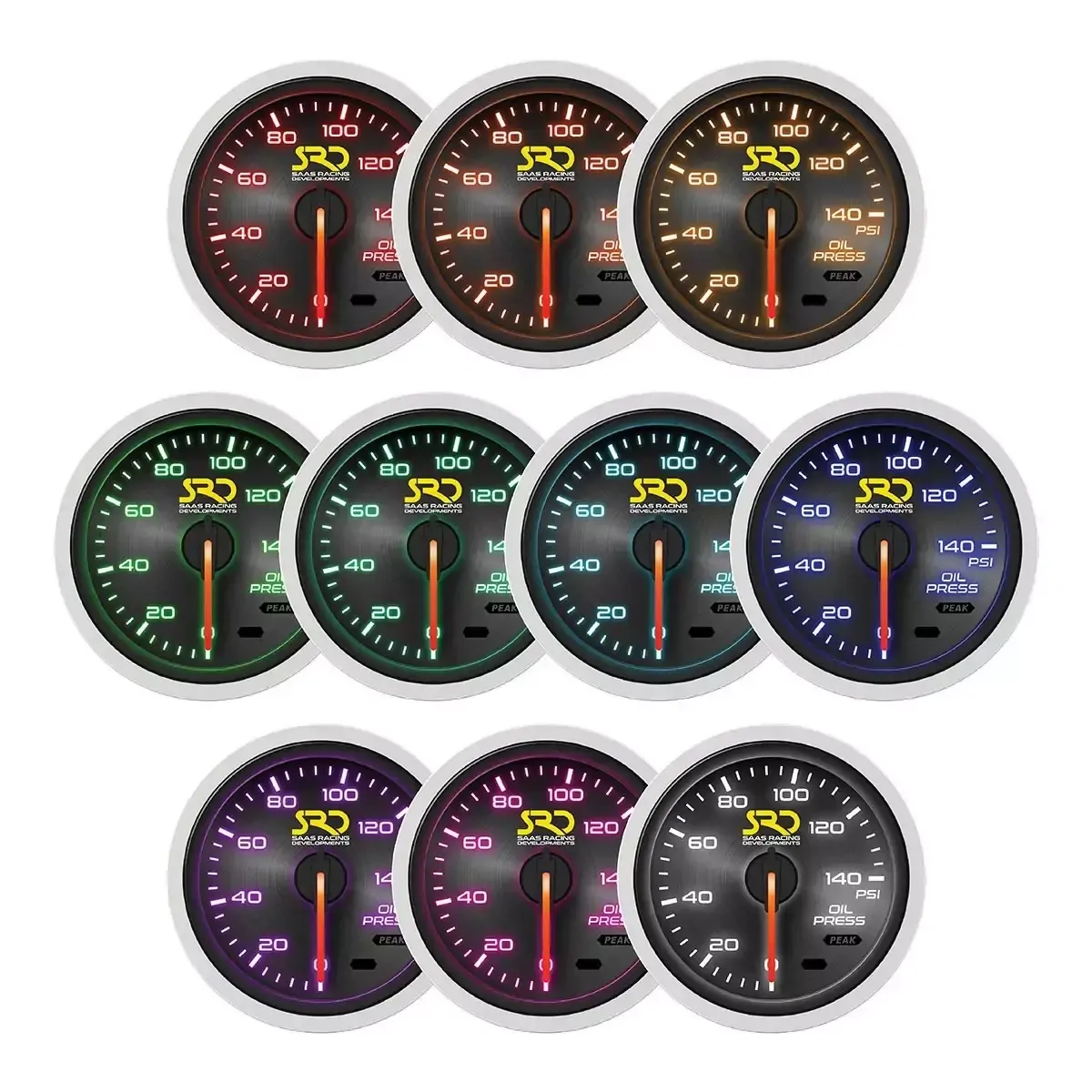

Lighting | LED Multi-select 10 Colour |
Type | Electronic |
Bracket Mounting | SG61005 |
Gauge Link Connector | SG9101 |
Programming Button | SG4106 |
Sender Oil Pressure | SG91002 incl loom |
Sender Thread | 1/8" NPT |
Sender Adaptors | List Adaptors |
Wiring Loom | SG5100 |
SKU | SG51230 |
Barcode | 9348391019043 |
Length | 95mm |
Width | 125mm |
Height | 150mm |
Cubic | 0.0018m³ |
Weight | 0.40kg |
