Engine oil pressure is one your engine's most vital signs and monitoring for any variation is critical. Keep an eye on pressure movement and make a interior design statement at the same time with our Muscle series 3 of gauges.
The sender is most commonly piggy backed off the OE oil pressure sender/switch using a brass T-Adaptor. Alternatively, consider using a SAAS oil filter sandwich plate that provides up to 3 sender ports for accessories. Should the standard sender wire not be long enough, splice in an additional length of wire with a gauge NO GREATER than supplied loom wire. SAAS recommends <= 20AWG wire. Use of a heavier gauge wire or of too greater length will impact resistance and distort temperature readings
Series | Muscle Series III |
Bezel OD | 57mm / 2 1/4" |
Body OD | 52mm / 2" |
Range | 0-140psi |

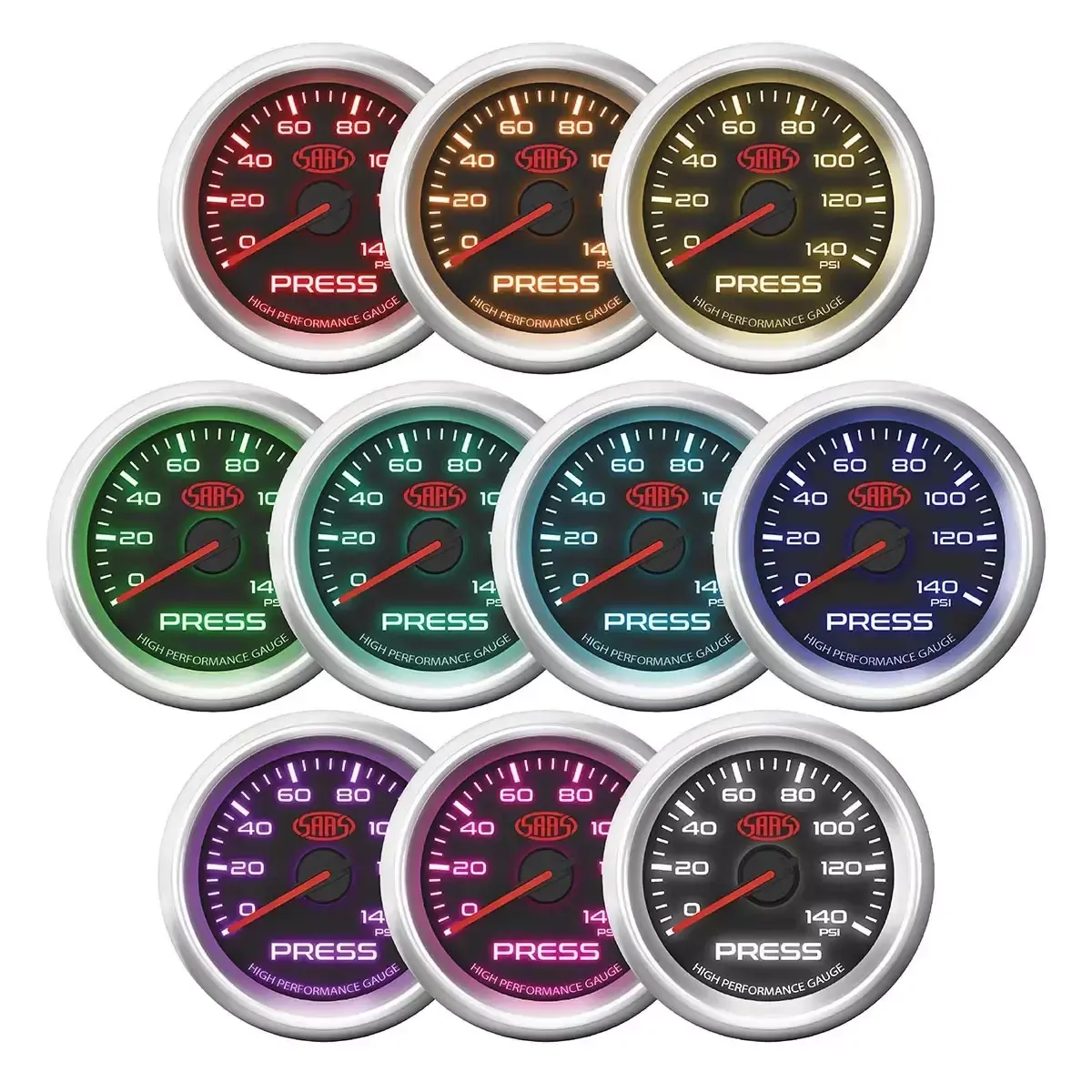

Lighting | LED Multi-select 10 Colour |
Type | Electronic |
Bracket Mounting | SG61005 |
Gauge Link Connector | SG9101 |
Programming Button | SG4106 |
Sender Oil Pressure | SG91002 incl loom |
Sender Thread | 1/8" NPT |
Sender Adaptors | List Adaptors |
Wiring Loom | SG5100 |
Download | Fitting Instructions |
SKU | SG32230 |
Barcode | 9348391027987 |
Length | 95mm |
Width | 125mm |
Height | 150mm |
Cubic | 0.0018m³ |
Weight | 0.40kg |
