Engine oil pressure is one your engine's most vital signs and monitoring for any variation is critical. Keep an eye on pressure movement and make a interior design statement at the same time with our Muscle series of gauges.
The sender is most commonly piggy backed off the OE oil pressure sender/switch using a brass T-Adaptor. Alternatively, consider using a SAAS oil filter sandwich plate that provides up to 3 sender ports for accessories.
Should the standard sender wire not be long enough, splice in an additional length of wire with a gauge NO GREATER than supplied loom wire. SAAS recommends <= 20AWG wire. Use of a heavier gauge wire or of too greater length will impact resistance and distort temperature readings.

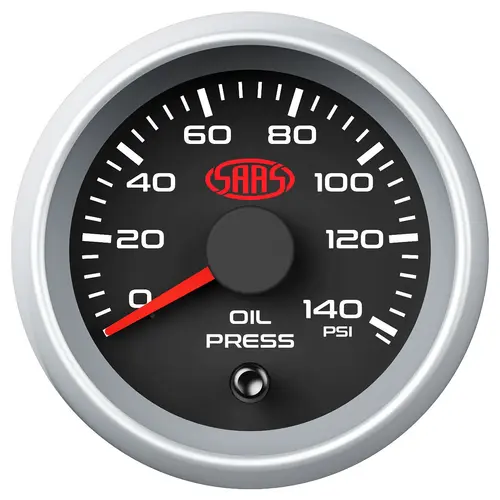

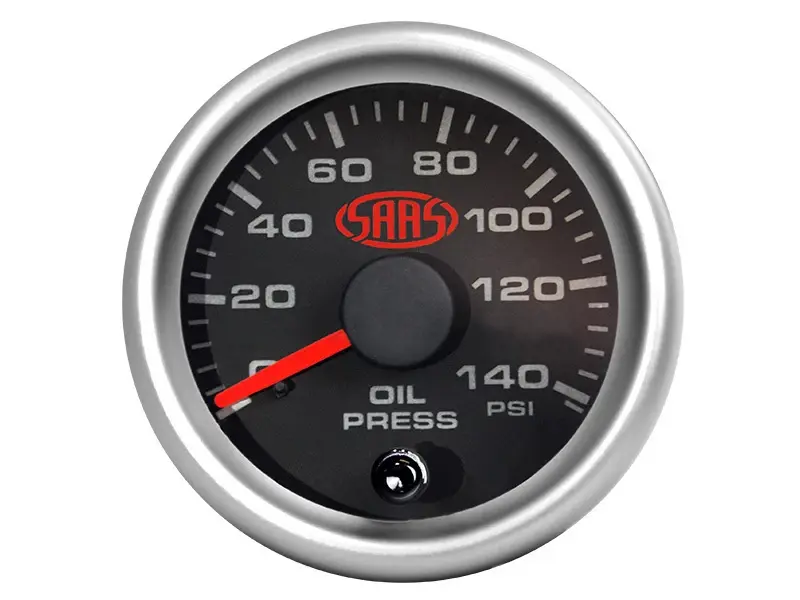

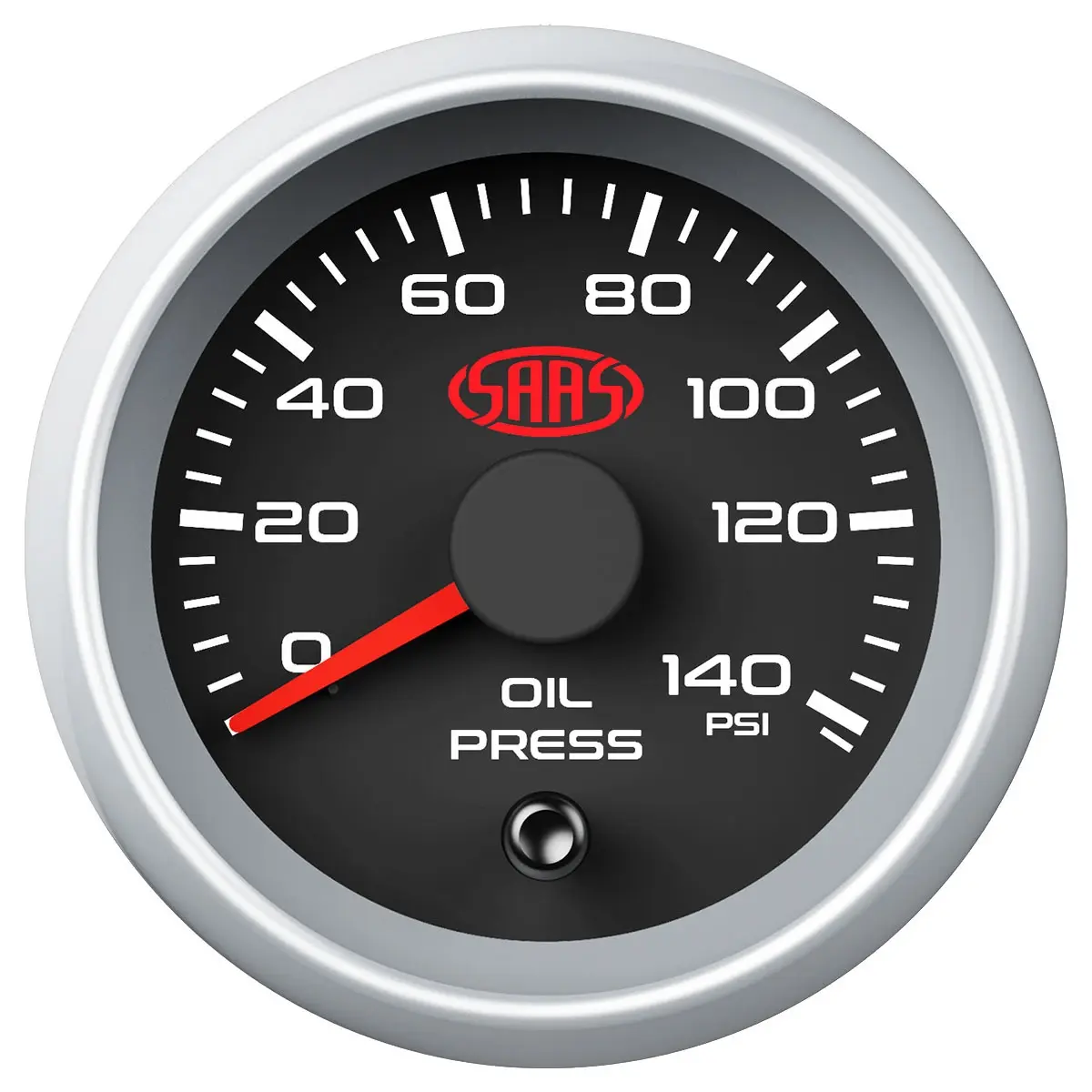

Series | Muscle Series II |
Body OD | 52mm / 2" |
Range | 0-140psi |
Lighting | LED Multi-select 4 Colour |
Type | Electronic |
Bracket Mounting | SG31005 |
Sender Oil Pressure | SG31002 |
Sender Thread | 1/8" NPT |
Sender Adaptors | List Adaptors |
Wiring Loom | SG3130 |
Download | Fitting Instructions |
SKU | SGOP52BS2 |
Barcode | 9348391007576 |
Length | 150mm |
Width | 125mm |
Height | 95mm |
Cubic | 0.0018m³ |
Weight | 0.40kg |
