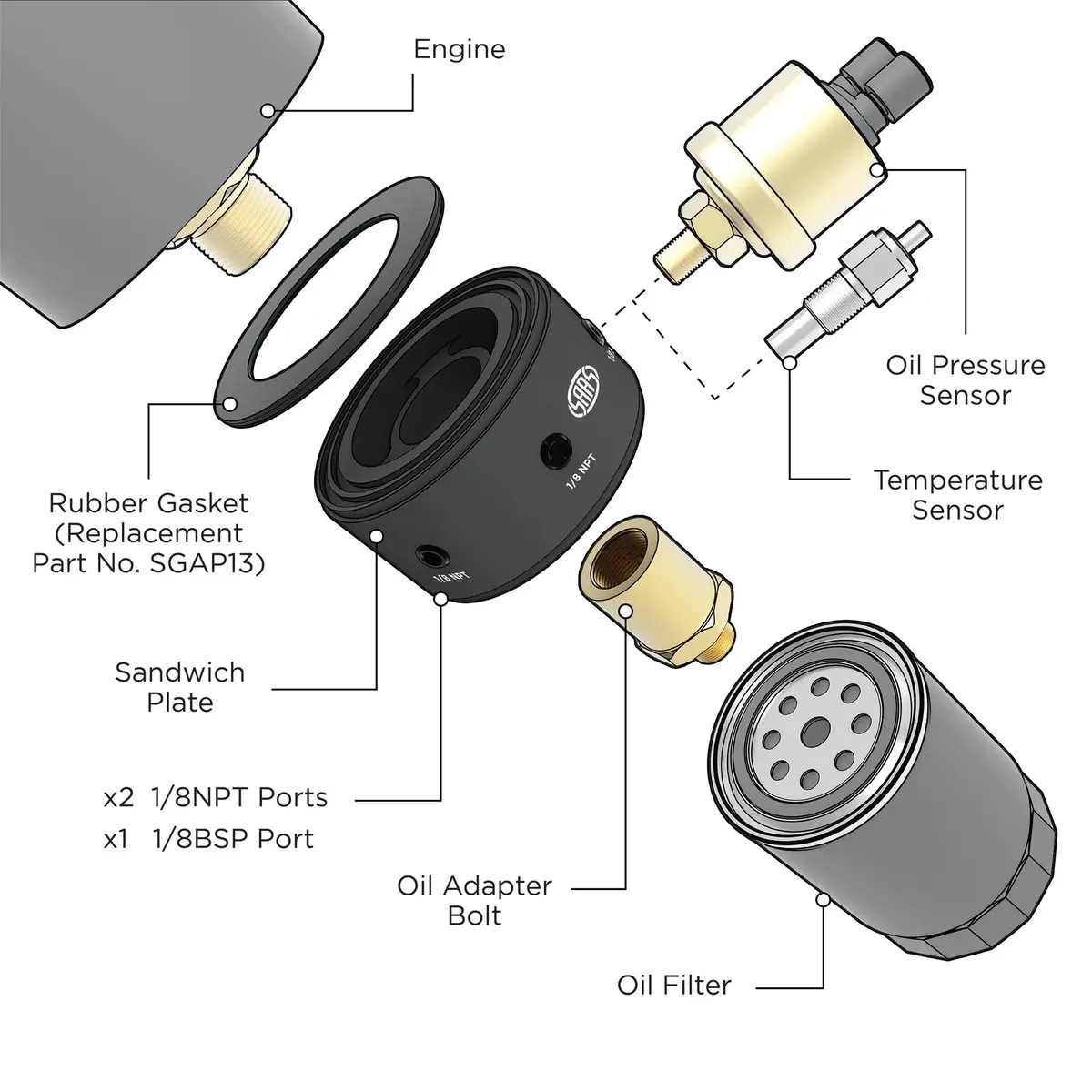

Note: Kit includes sandwich plate and filter adaptor bolt
Our new for '22 Oil Filter Sandwich Plate conversion kit provides a solution for those who wish to convert their conventional Z334 style M24x1.5 thread oil filters for the generally more available Z9 style 3/4-16 thread oil filters. The plate still provides the ability to add additional senders/switches for their aftermarket gauges. The SGAP6-2434 converts Toyota full flow oil filters with a M24x1.5 thread to a single pass Z9 style filter with 3/4-16 thread and comes with 2 x 1/8" NPT and 1 x 1/8 BSP take off ports for senders/switches.
Predominantly for Toyota diesel engines using M24x1.5 filters (as an example, the Z334 style oil filter), the adaptor plate measures 90mm in diameter and is 47mm in depth.
Be advised that single pass oil filters will not provide the same degree of filtration as a conventional dual pass.
OD | 90mm |
Depth | 47mm |
Ports | 2 x 1/8-27 NPT 1 x 1/8 BSP |
Gasket | SGAP13 |
SKU | SGAP6-2434 |
Barcode | 9348391024672 |
Length | 185mm |
Width | 130mm |
Height | 80mm |
Cubic | 0.0019m³ |
Weight | 0.50kg |
