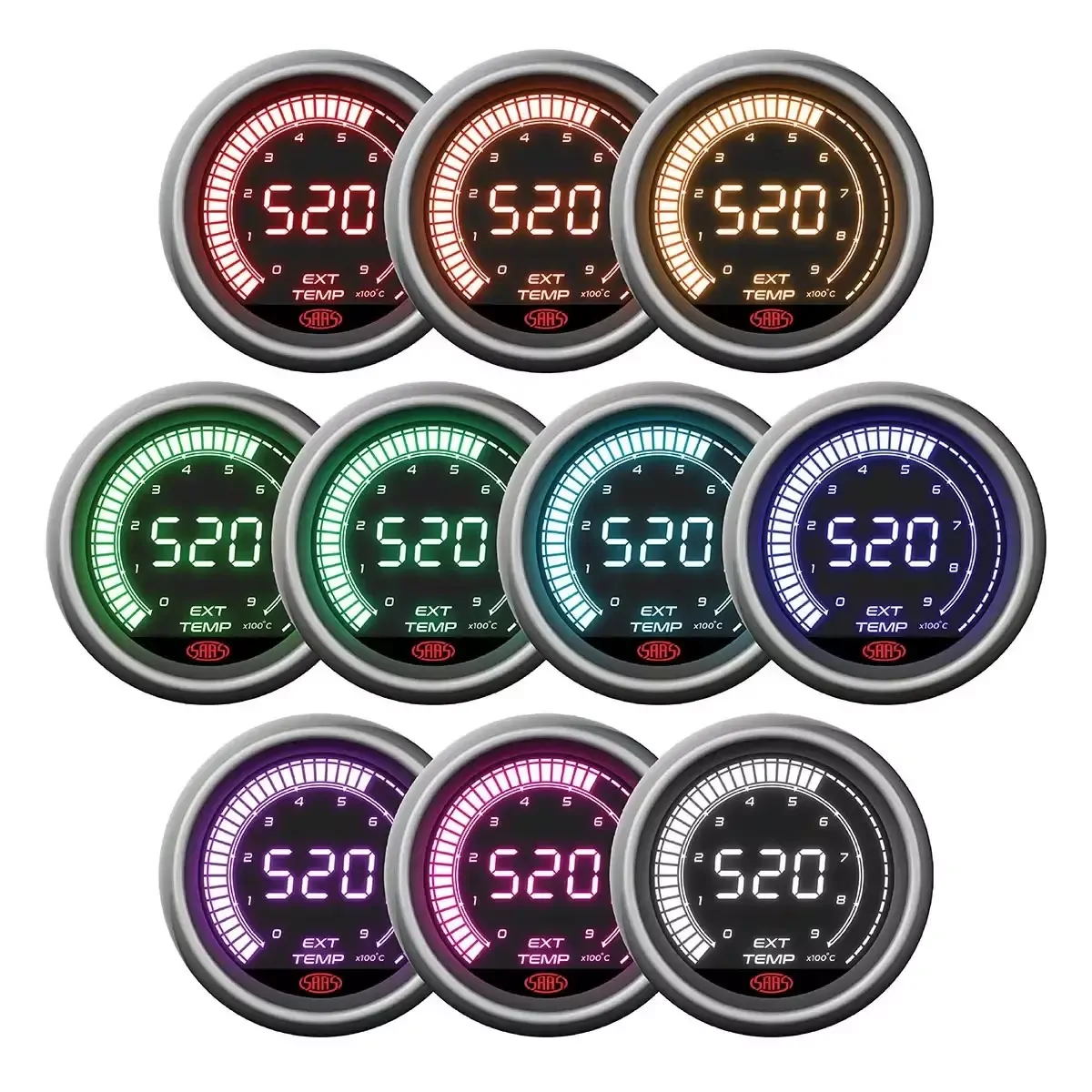

The new for 2021 SAAS Muscle Digital specialty gauges give you digital readings with the added advantage of dimmable backlighting.
No moving components allows for a vibration proof environment making these gauges ideal for 4WD offroad and performance applications.
Monitor your vehicle's exhaust gas temperature and be on the alert for possible overheating or other potential engine issues. Designed to measure high temperatures beyond those of a normal temperature gauge, our Muscle Digital series EGT gauges feature a thermocoupled sensor that can be placed into an appropriate temperature source such as the exhaust manifold.
These gauges become an essential tool in checking for imbalanced air/fuel ratios which can be influenced by restricted air filtration systems, altitude, load, ambient temperature and so on. Modify your driving (when towing for example) before excessive temperature builds.
Series | Muscle Digital |
Bezel OD | 57mm / 2 1/4" |
Body OD | 52mm / 2" |
Range | 0°-900° |
Lighting | LED Multi-select 10 Colour |
Type | Digital |
Bracket Mounting | SG21005 |
Exh Temp Bung | SGA1001 |
Exh Temp Bung Adaptor | SGA-320048 (1/8 NPT -> 1/4 BSP) |
Exh Temp Adaptor | SG31013 |
Gauge Link Connector | SG9101 |
Programming Button | SG4106 |
Sender EGT | SG91003 |
Sender EGT (Heavy Duty) | SG91003HD |
Sender EGT Extension | SG91008 1.2m |
Sender Thread | 1/8" NPT |
Sender Adaptors | List Adaptors |
Wiring Loom | SG9100 4 Pin Main |
Wiring Loom Connector | SG9105 100mm 2 pin |
Download | Fitting Instructions |
SKU | SG41240 |
Barcode | 9348391020346 |
Length | 95mm |
Width | 125mm |
Height | 150mm |
Cubic | 0.0018m³ |
Weight | 0.40kg |
