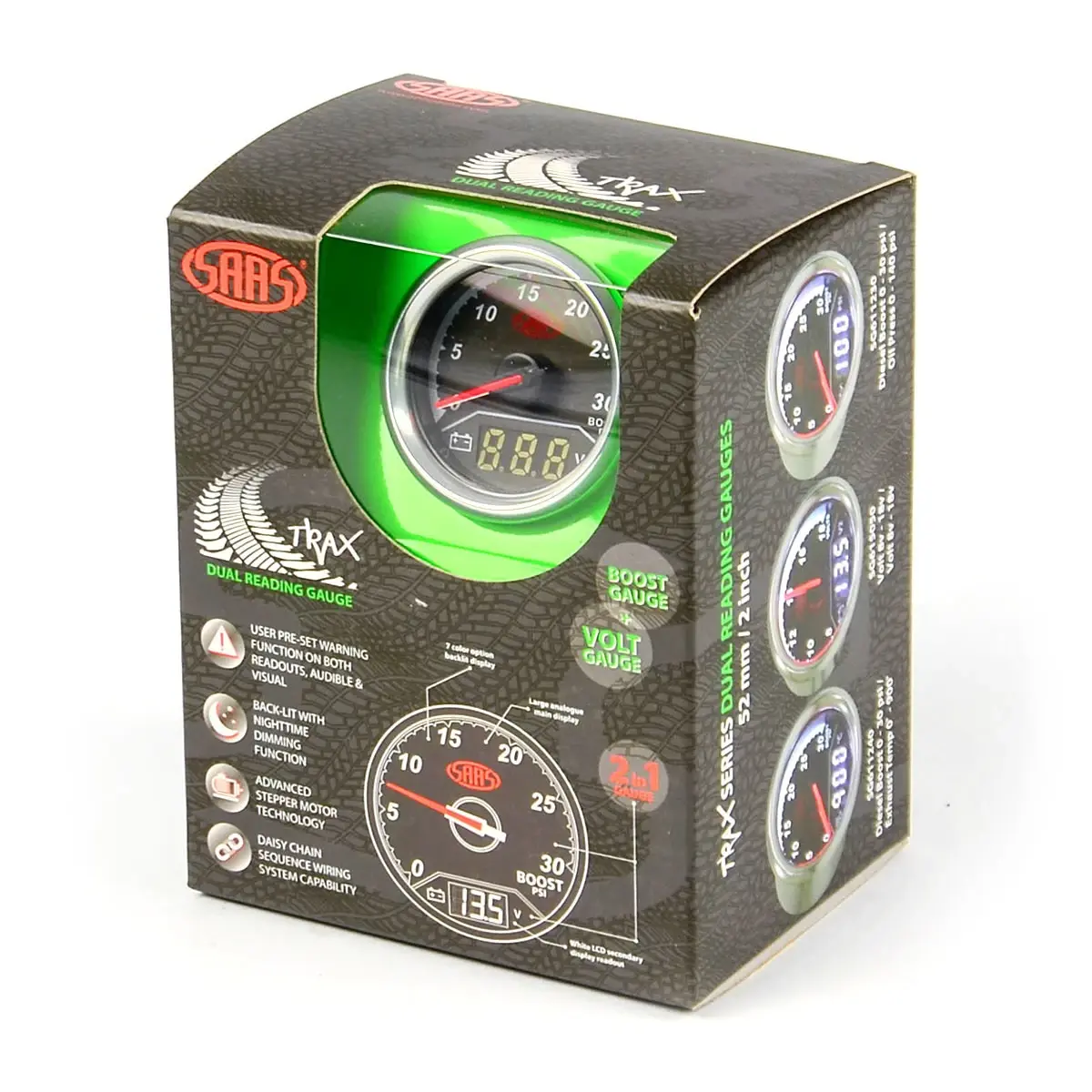

If it's one thing we've noticed, it's that 4WD owners are hungry for information. And when it comes to knowing how their vehicle is performing, the more information the better. Our TRAX dual reading gauges have been developed to up the information ante, effectively giving you two gauges in one.
Combine the Engine Boost/Voltmeter gauge with another TRAX dual reading gauge and mount them in one of our custom fit SAAS Pillar Pods - depending on your vehicle, you can have up to 6 gauges giving you the complete read on your vehicle's status.
A common issue with diesel boost gauges is that they can appear to emit a "rattle" or ticking sound. This is often caused by the boost hose acting as a stethoscope and amplifying pulses from the engine. You can quieten this by installing one of our Boost Gauge Dampeners as per the image below. Further improve gauge performance by using silicone vacuum hose as the pipe also acts as a dampener.
Series | Trax Dual |
Bezel OD | 57mm / 2 1/4" |
Body OD | 52mm / 2" |
Range | Boost 0-30 Psi Analogue /Volt 8v-18v Digital |

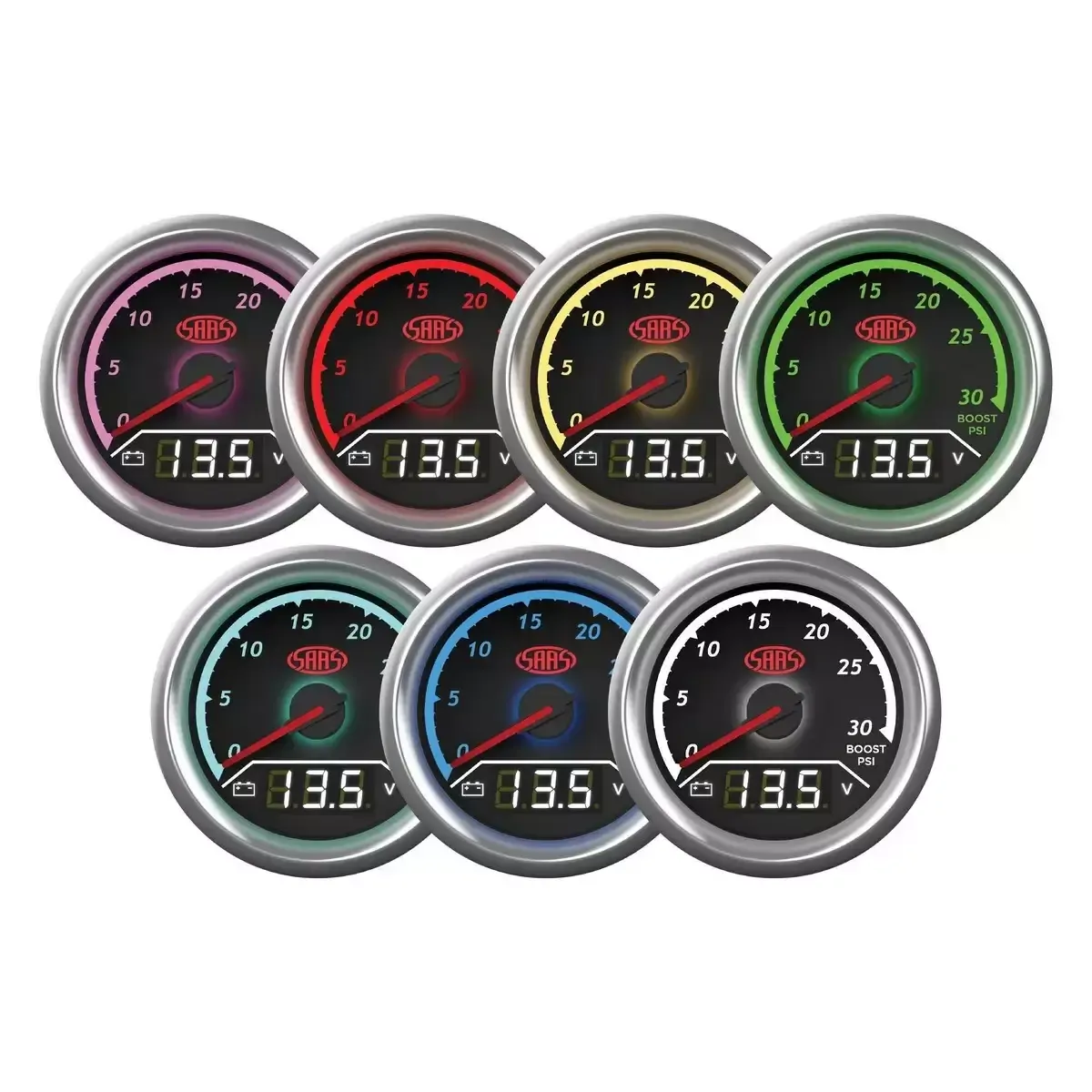

Lighting | LED Multi-select 7 Colour |
Type | Electronic |
Bracket Mounting | SG61005 |
Boost Vac Line Kit | SG21007 |
Gauge Link Connector | SG6101 |
Sender Boost | SG61004 incl loom |
Sender Thread | 1/8" NPT |
Sender Adaptors | List Adaptors |
Wiring Loom | SG6100 4 Pin (Main) |
Wiring Loom Boost/Oil Sender | SG6104 3 pin |
Download | Fitting Instructions |
SKU | SG611250 |
Barcode | 9348391012358 |
Length | 155mm |
Width | 120mm |
Height | 100mm |
Cubic | 0.0019m³ |
Weight | 0.50kg |
